Splice Block 22 Connector End View (C223)

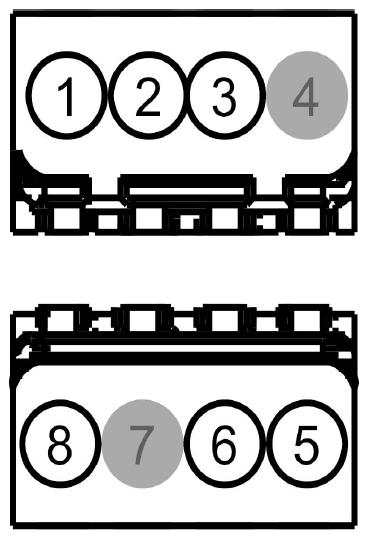

Fig 1: Identifying Splice Block 22 Connector End View (C223)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER
2	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER
3	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER
4	*	*	Not Used
5	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER
6	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER
7	*	*	Not Used
8	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER
