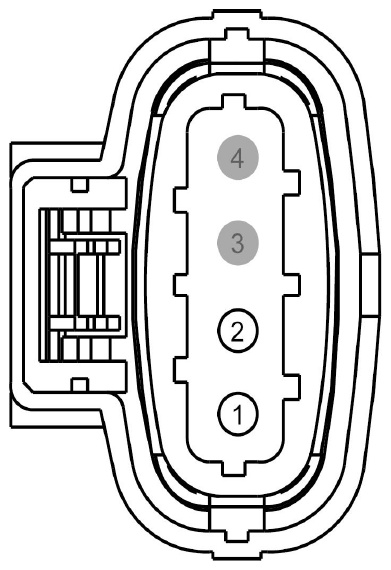

Intake Air Temperature (IAT) Sensor Connector End View (C129)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE332 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR (SIGRTN) | 1.6L |
| 2 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | 1.6L |
| 3 | * | * | Not Used | 1.6L |
| 4 | * | * | Not Used | 1.6L |
| Available Pigtail Kits | |
|---|---|

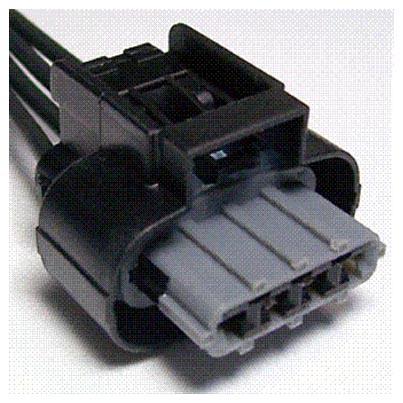

| Pigtail Kit Part Number WPT-1232 | Service Part Number: BU2Z-14S411-ATA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses
|
