Fog Lamp, Left Front Connector End View (C152)

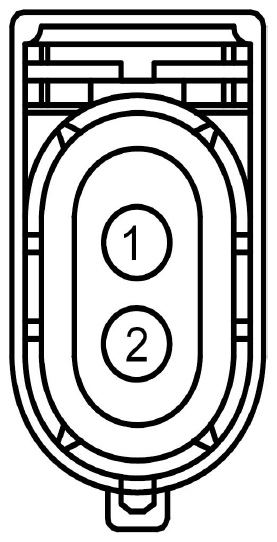

Fig 1: Identifying Fog Lamp, Left Front Connector End View (C152)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF29 (BN)	20	RELAY - FOG LAMPS FRONT
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT # 2ND STUD

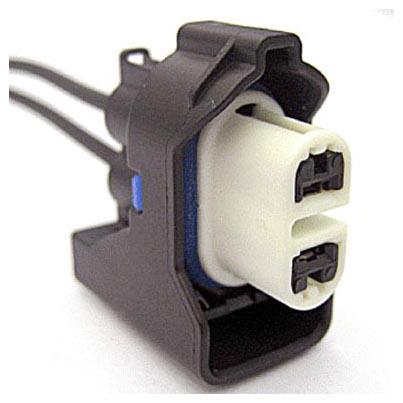

Available Pigtail Kits
Pigtail Kit Part Number WPT-904	Service Part Number: 8U2Z-14S411-GA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Ash Tray
