CLOCKSPRING Connector End View (C218A)

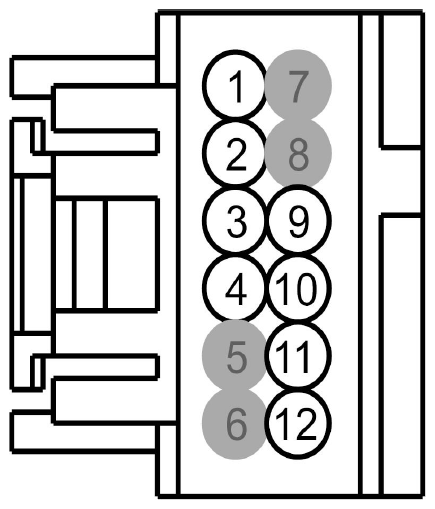

Fig 1: Identifying Clockspring Connector End View (C218A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (BU-WH)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	Fusion
1	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	MKZ
2	RHS73 (BN-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR
3	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +
10	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -
11	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -
12	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+

Available Pigtail Kits

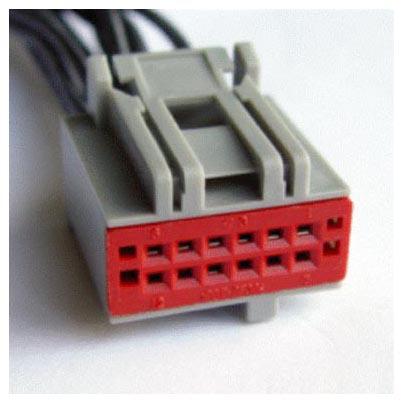

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

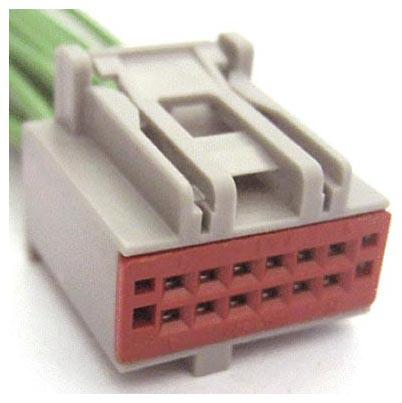

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA  Gauge: 18  Pin material: Tin  Cavities: 12  Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
