Battery Cables - 2.5L Duratec (125kW/170PS): Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: BATTERY DISCONNECT AND CONNECT .

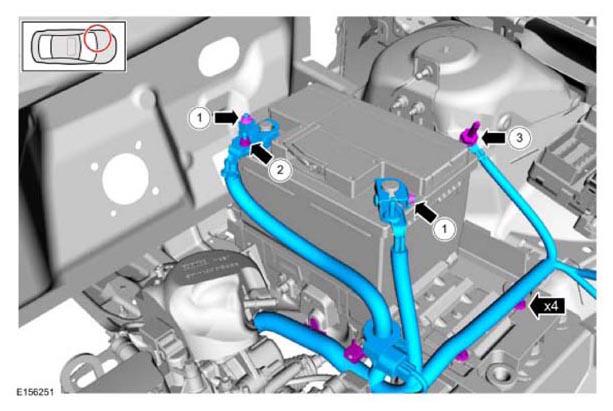

1. Torque : 5 Nm
2. Torque : 9 Nm
3. Torque : 12 Nm

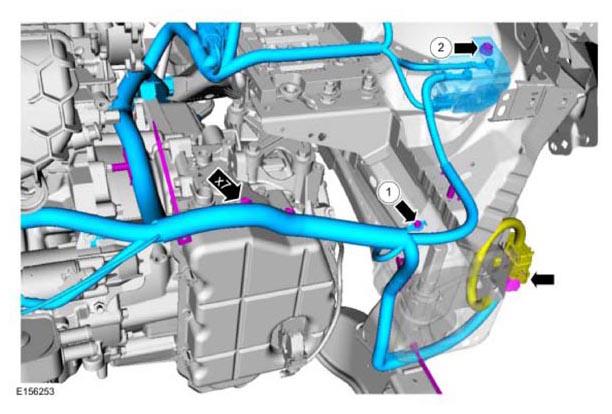

1. Torque : 17 Nm
2. Torque : 12 Nm
3. Torque : 6 Nm
4. Torque : 17 Nm

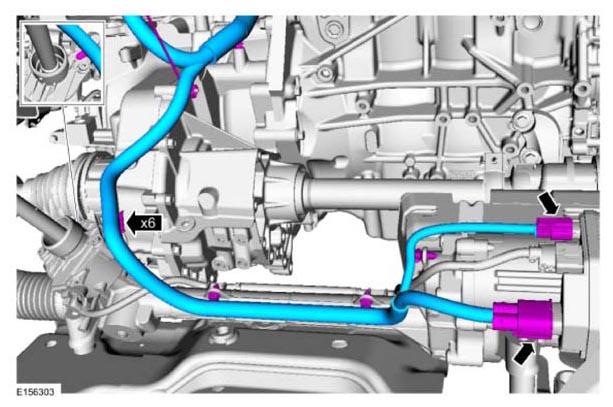

1. Torque : 10 Nm
2. Torque : 15 Nm
