Battery Cables - 1.5L EcoBoost (118kW/160PS): Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: BATTERY DISCONNECT AND CONNECT .

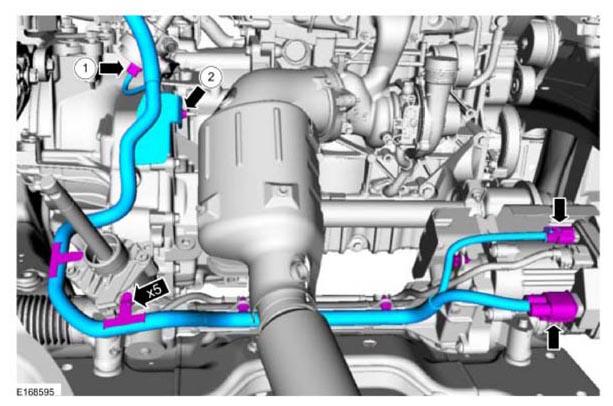

Vehicles without Auto-Start-Stop System
1. Torque : 5 Nm
2. Torque : 12 Nm

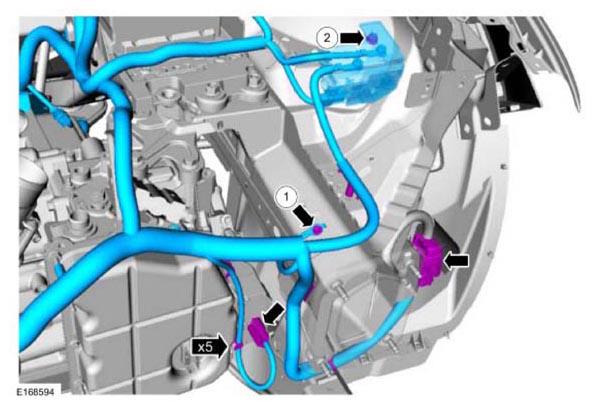

Vehicles with Auto-Start-Stop System
1. Torque : 5 Nm
2. Torque : 12 Nm

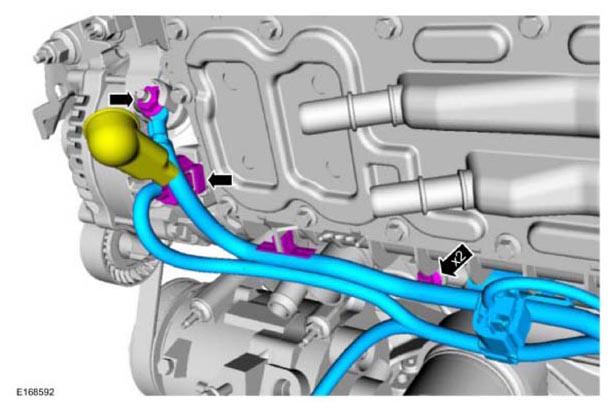

  All vehicles
Torque : 17 Nm

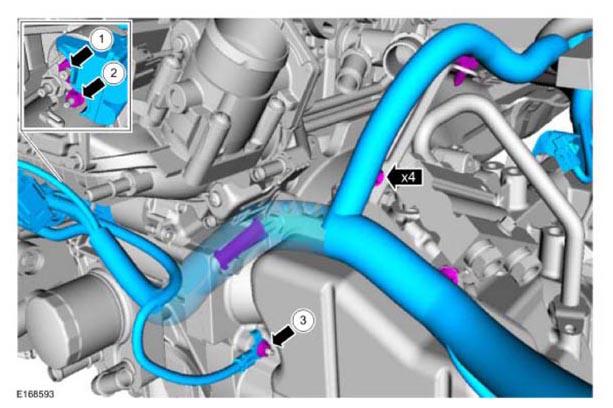

1. Torque : 12 Nm
2. Torque : 6 Nm
3. Torque : 10 Nm

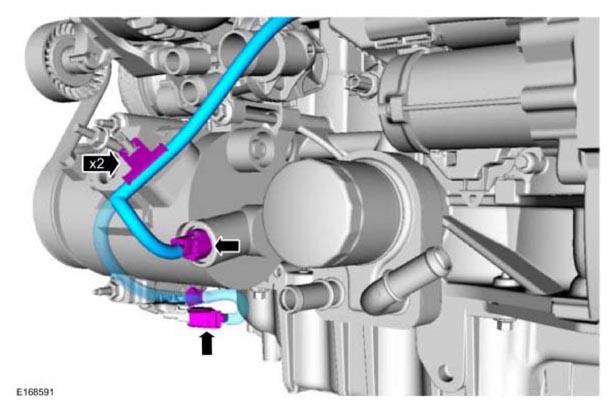

1. Torque : 10 Nm
2. Torque : 15 Nm
1. Vehicles with Auto-Start-Stop System
2. Torque : 12 Nm
