Transmission Controls - 6F35: 1.6L

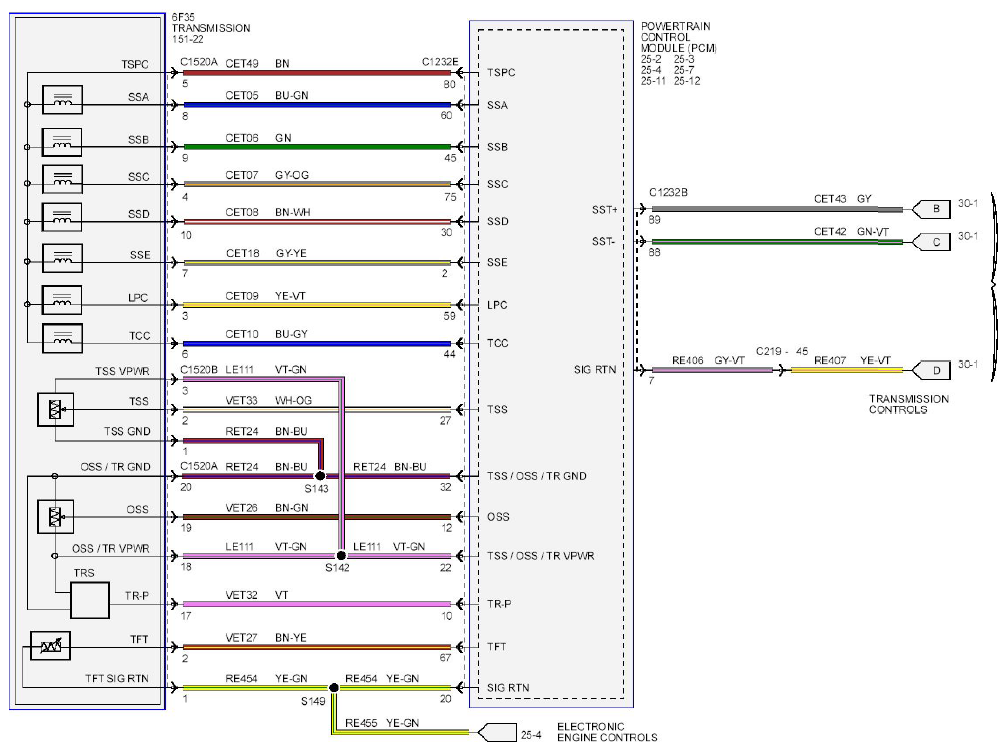

Fig 1: Transmission Controls Wiring Diagram - 1.6L

G08745313

Courtesy of FORD MOTOR CO.
