Remote Keyless Entry and Alarm: MKZ

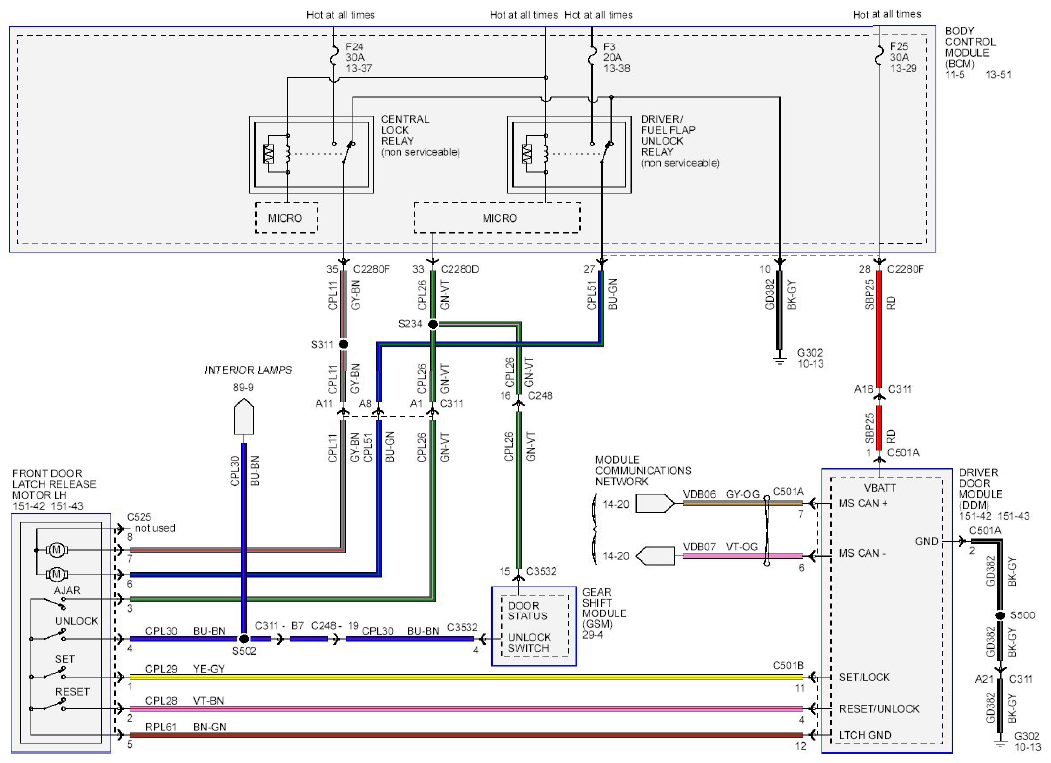

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - MKZ (1 Of 2)
G08745429Courtesy of FORD MOTOR CO.

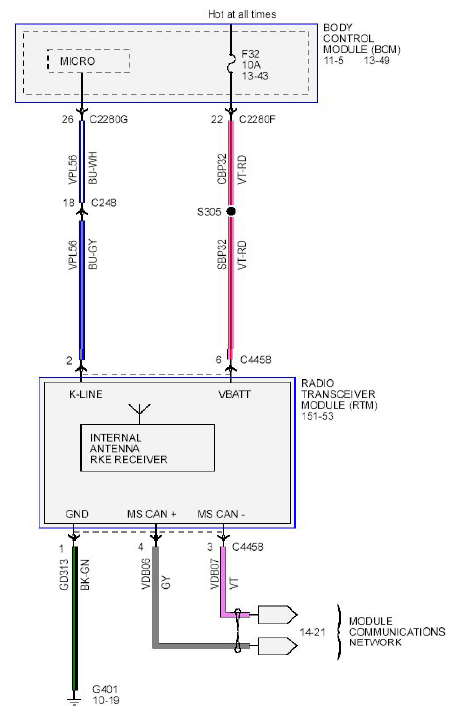

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - MKZ (2 Of 2)
G08745443Courtesy of FORD MOTOR CO.
