Remote Keyless Entry and Alarm: Fusion

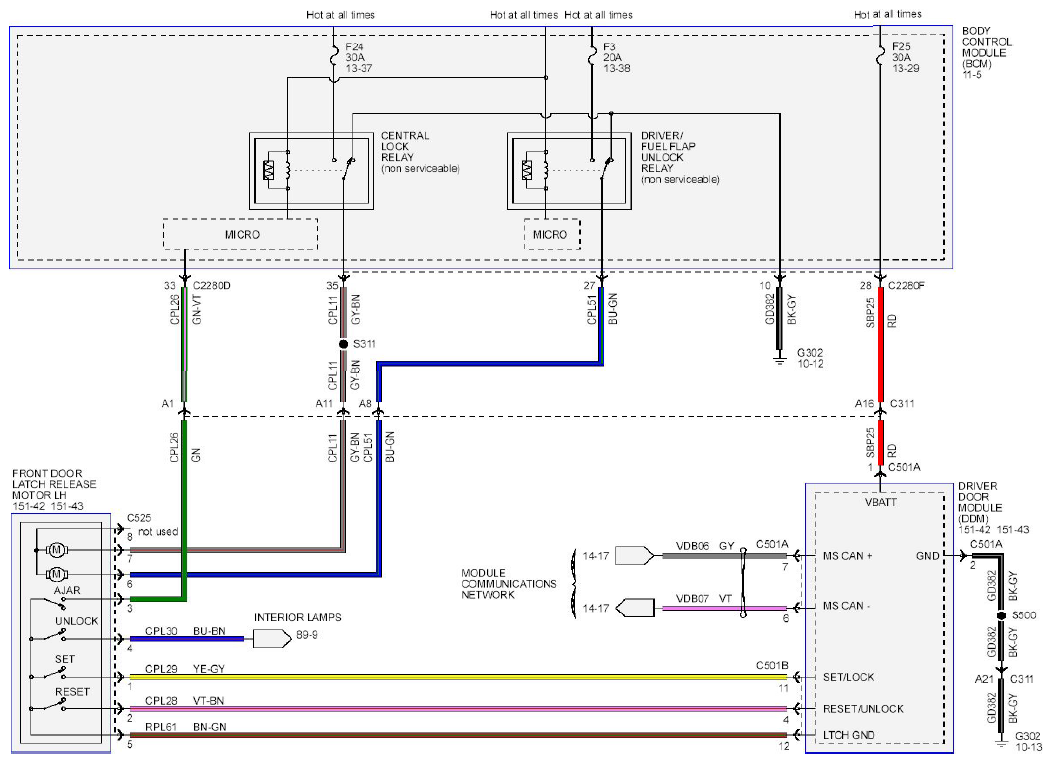

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (1 Of 6)
G08745428Courtesy of FORD MOTOR CO.

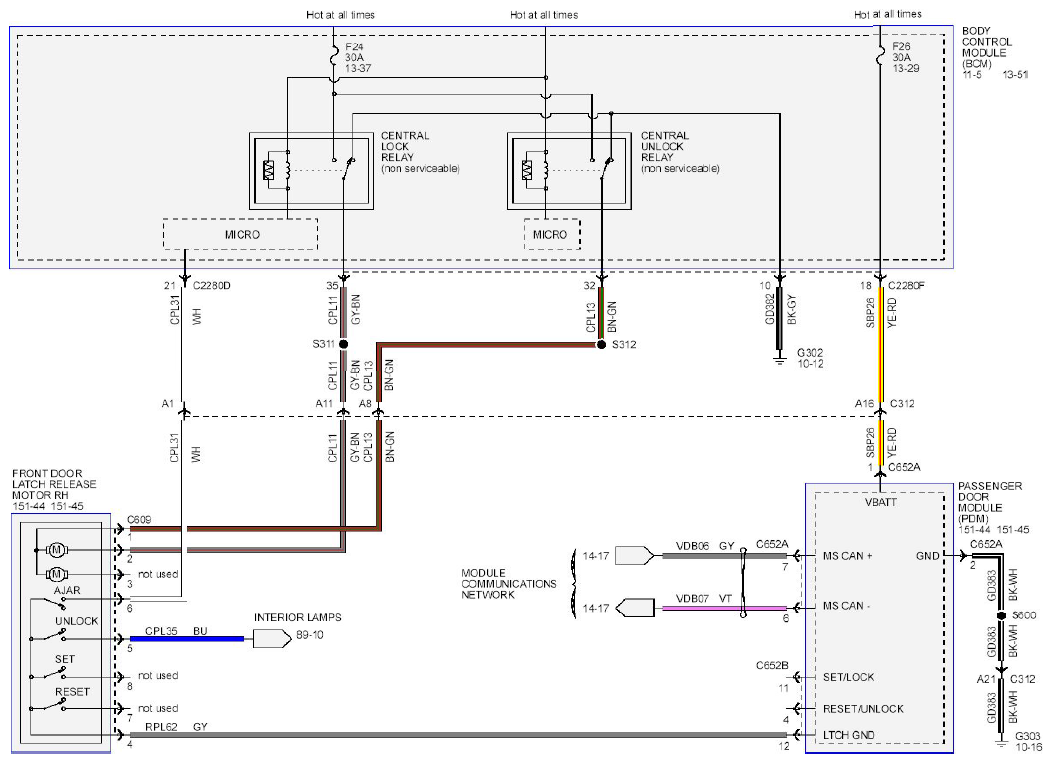

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (2 Of 6)
G08745430Courtesy of FORD MOTOR CO.

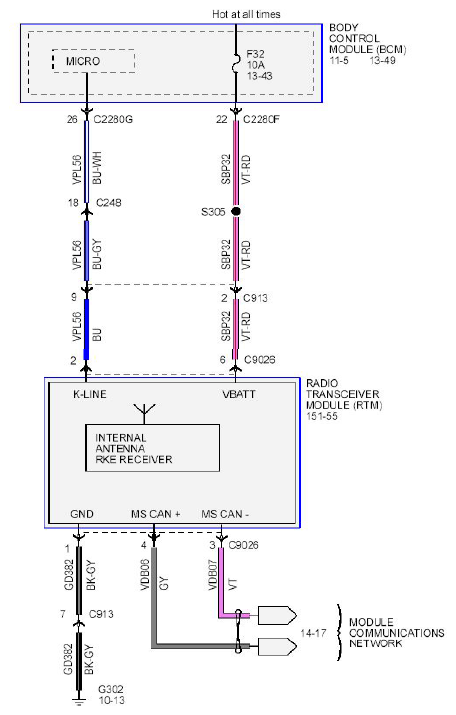

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram - Fusion (6 Of 6)
G08745442Courtesy of FORD MOTOR CO.
