Fusion 10-Way Power Seat Without Memory - Driver

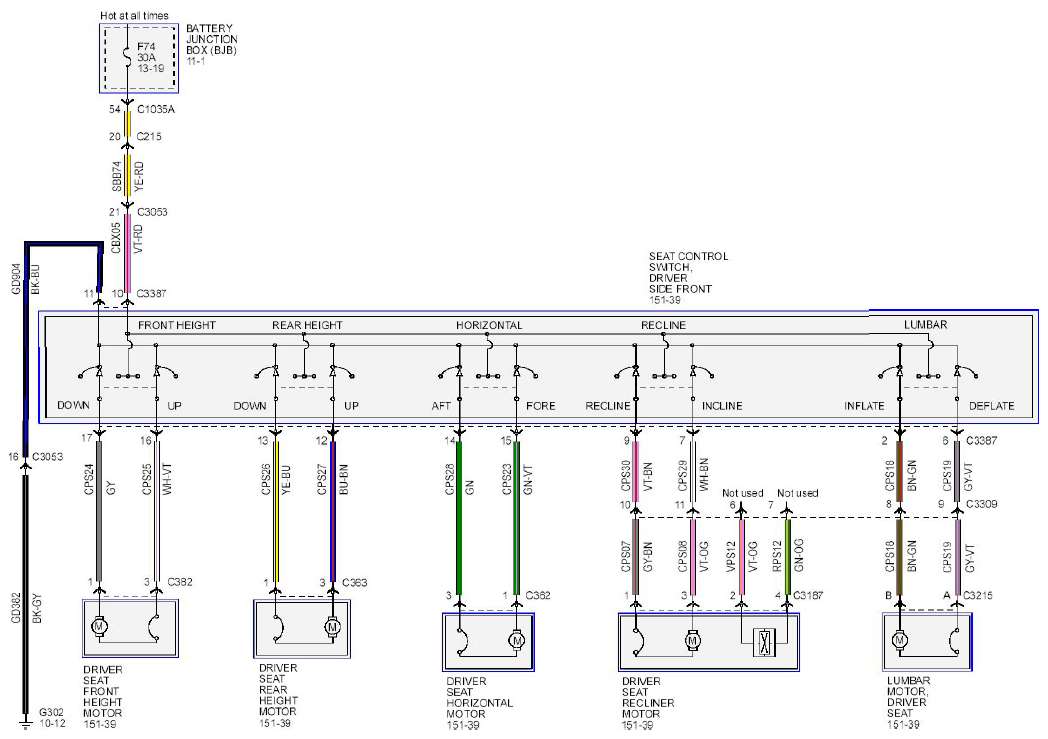

Fig 1: Power Seats Wiring Diagram - Fusion 10-Way Power Seat Without Memory (Driver)

G08745456

Courtesy of FORD MOTOR CO.
