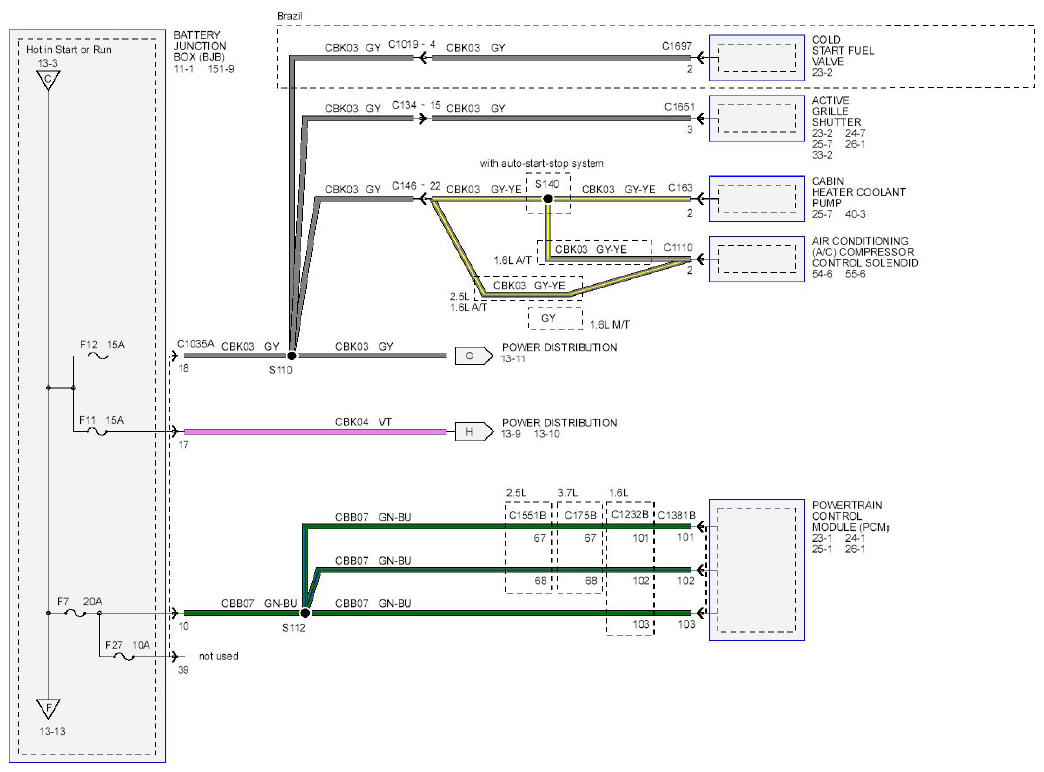

Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams -- (Except Hybrid) >> Power Distribution >> F7, F11, F14, F27
