G110, G111, G112, G200

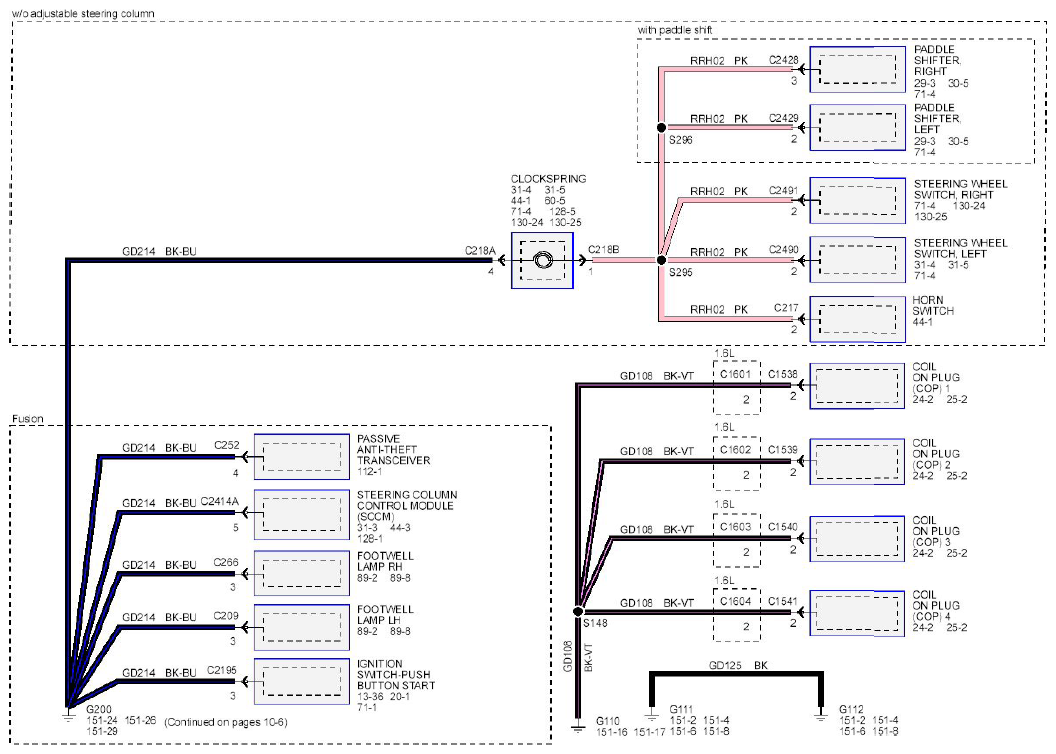

Fig 1: G110, G111, G112, G200 Grounds Diagram
G08745155Courtesy of FORD MOTOR CO.
