G100, G102, G103, G104, G105, G108, G109

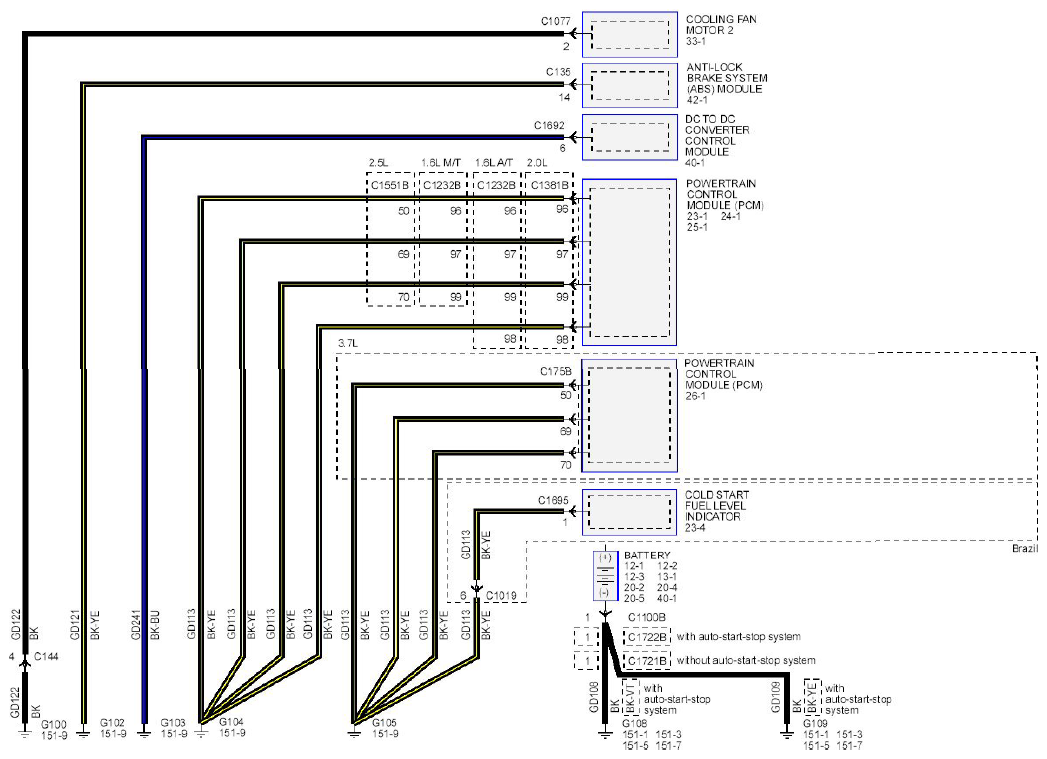

Fig 1: G100, G102, G103, G104, G105, G108, G109 Grounds Diagram

G08745151

Courtesy of FORD MOTOR CO.
