BATTERY JUNCTION BOX (BJB) (top view)

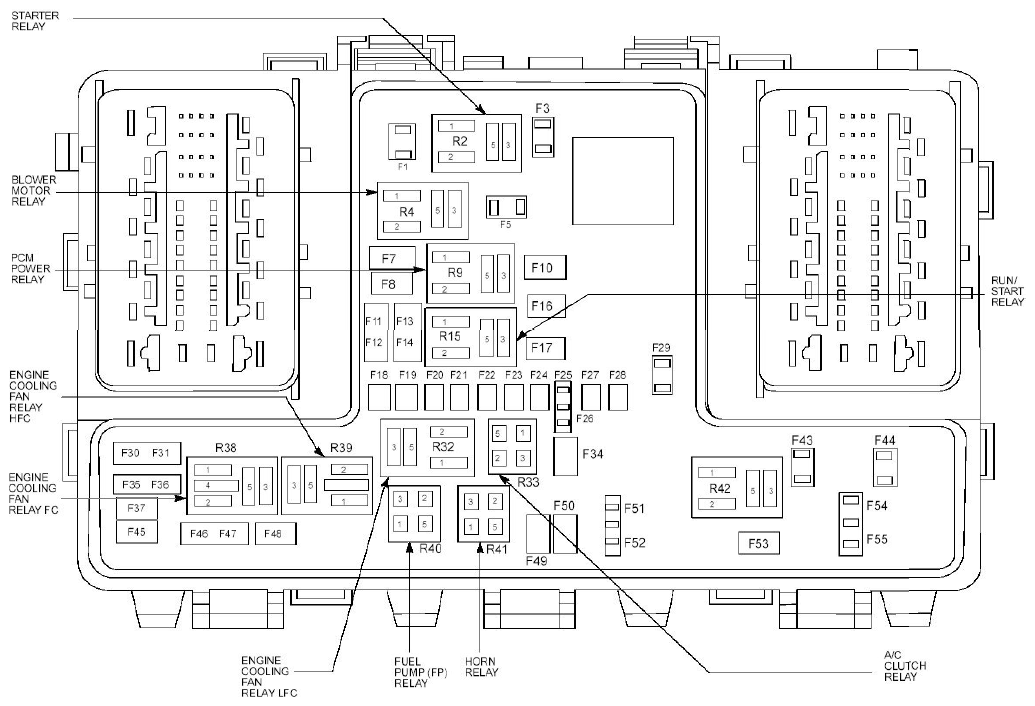

Fig 1: Top View Of Battery Junction Box (BJB), Fuses And Relays

G08752392

Courtesy of FORD MOTOR CO.

BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
R38	ENGINE COOLING FAN RELAY FC
R39	ENGINE COOLING FAN RELAY HFC
R9	PCM POWER RELAY
R4	BLOWER MOTOR RELAY
R2	STARTER RELAY
R15	RUN/START RELAY
R33	A/C CLUTCH RELAY
R41	HORN RELAY
R40	FUEL PUMP (FP) RELAY
R32	ENGINE COOLING FAN RELAY LFC
