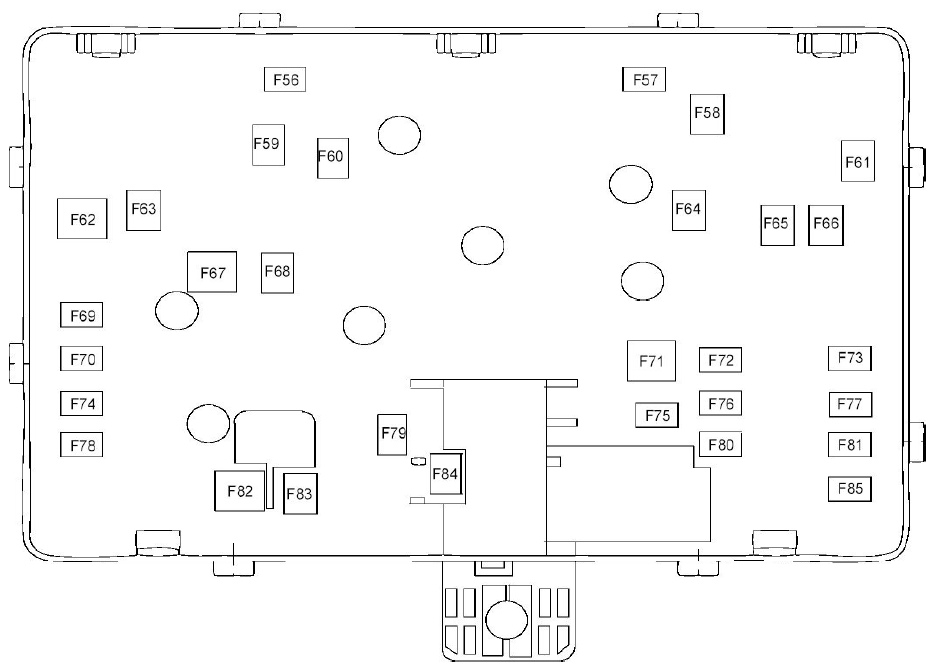

BATTERY JUNCTION BOX (BJB) (bottom view)
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 25 | Windshield wiper motor, right front |
| F3 | 15 | Rain sensor module |
| F5 | 20 | Rear passenger power outlet socket |
| F7 | 20 | Powertrain Control Module (PCM) |
| F8 | 20 | Mass Airflow/Intake Air Temperature (MAF/IAT) sensor, EVAP purge valve, EVAP canister vent valve, Evaporative Emission (EVAP) purge valve Variable Camshaft Timing 12 (VCT12) solenoid, Variable Camshaft Timing 11 (VCT11) solenoid, Heated Oxygen Sensors (HO2S), Variable Camshaft Timing 11 (VCT11) solenoid (2.5L) Variable Camshaft Timing 21 (VCT21) solenoid (3.7L), Variable Camshaft Timing 22 (VCT22) solenoid (3.7L), Universal Heated Oxygen Sensors (HO2S), EGR stepper motor (2.5L) |
| F10 | 20 | Cigar lighter |
| F11 | 15 | Coil On Plugs (COPs), Ignition transformer capacitor (2.5L) |
| F12 | 15 | Engine cooling bypass solenoid, Turbocharger (TC) wastegate regulating valve solenoid, Turbocharger Bypass Valve (TCBY) (1.6L), Engine coolant valve (1.6L) Cold start fuel clutch (Brazil), Active grille shutter, Air Conditioning (A/C) compressor control solenoid, Cabin heater coolant pump (auto-start-stop) |
| F16 | 20 | Front power outlet socket |
| F17 | 20 | Not used |
| F18 | 10 | Powertrain Control Module (PCM), EVAP canister vent valve (3.7L) |
| F19 | 10 | Power Steering Control Module (PSCM) |
| F20 | 10 | Headlamp assembly LH, Headlamp assembly RH |
| F21 | 15 | Transmission fluid pump |
| F22 | 10 | Air Conditioning (A/C) compressor |
| F23 | 15 | Transmission Range Control Module (TRCM) (MKZ), Proximity warming radar unit, Head Up Display (HUD) module, Rear parking aid camera Side Obstacle Detection Control Module - Right (SOD - R), Side Obstacle Detection Control Module - Left (SOD - L), DC to DC converter control module (auto-start-stop) |
| F25 | 10 | Anti-Lock Brake System (ABS) module |
| F26 | 10 | Powertrain Control Module (PCM) |
| F27 | 10 | Not used |
| F37 | 5 | Not used |
| F46 | 10 | Generator |
| F47 | 10 | Stoplamp switch |
| F48 | 20 | Horn |
| F49 | 5 | Powertrain Control Module (PCM) |
| F53 | 10 | Multi contour seat relay |
| F54 | 5 | Not used |
| F55 | 5 | Not used |
| F56 | 30 | Fuel pump control module, Fuel injectors |
| F57 | 20 | E100 relay (Brazil) |
| F59 | 30 | Engine cooling fan relay HFC |
| F60 | 30 | Engine cooling fan relay LFC |
| F62 | 50 | Body Control Module (BCM) |
| F63 | 20 | Cooling fan motor 2 |
| F65 | 20 | Front controls Interface Module (FCIM) |
| F67 | 50 | Body Control Module (BCM) |
| F68 | 40 | Rear window defrost relay |
| F69 | 30 | Anti-Lock Brake System (ABS) module |
| F70 | 30 | Seat control switch, passenger side front |
| F72 | 30 | Panoramic roof opening panel shield, Panoramic roof opening panel primary motor |
| F73 | 20 | Heated seat module, rear |
| F74 | 30 | Driver Seat Module (DSM), Seat control switch, driver side front |
| F76 | 20 | Transmission fluid pump, Transmission Range Control Module (TRCM) (MKZ) |
| F77 | 30 | Dual Climate Controlled Seat Module (DCSM) |
| F78 | 40 | Not used |
| F79 | 40 | Blower motor relay |
| F80 | 30 | Rear Gate Trunk Module (RGTM), Luggage Compartment lid latch, Power striker module |
| F81 | 40 | Direct Current/Alternating Current (DC/AC) inverter |
| F82 | 60 | Anti-Lock Brake System (ABS) module |
| F83 | 25 | Windshield wiper motor, left front |
| F84 | 30 | Starter relay |
| F85 | 30 | Panoramic roof opening panel secondary motor |
