Passenger Seat Front Height Motor Connector End View (C3074)

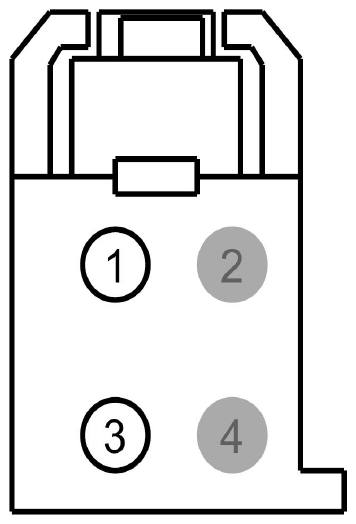

Fig 1: Identifying Passenger Seat Front Height Motor Connector End View (C3074)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN
2	*	*	Not Used
3	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP
4	*	*	Not Used

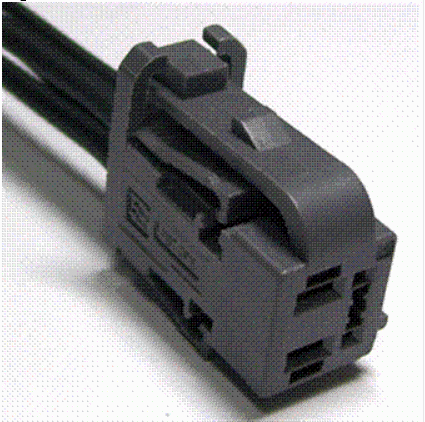

Available Pigtail Kits
Pigtail Kit Part Number WPT-1350	Service Part Number: DU2Z-14S411-UA  Gauge: 16 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front)
