Adjustable Steering Column Motor, Tilt Connector End View (C2600)

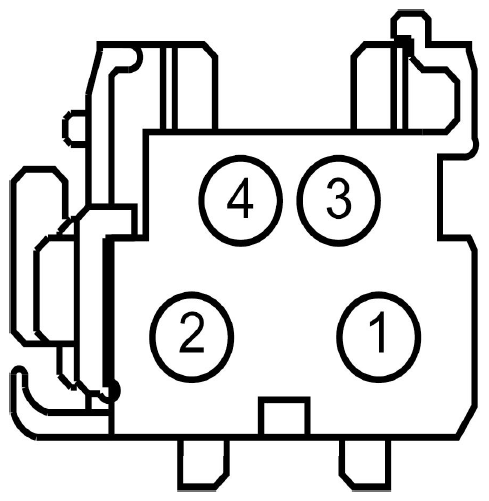

Fig 1: Identifying Adjustable Steering Column Motor, Tilt Connector End View (C2600)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP23 (VT-GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN
2	CPP04 (GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP
3	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
4	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)

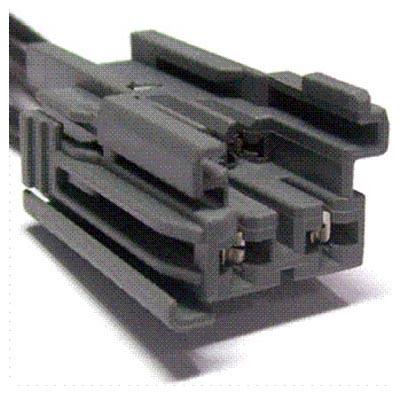

Available Pigtail Kits
Pigtail Kit Part Number WPT-1072	Service Part Number: AU2Z-14S411-RA  Gauge: 14 18  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) Motor - Steering Column Adjust
