Adjustable Steering Column Motor, Telescope Connector End View (C2601)

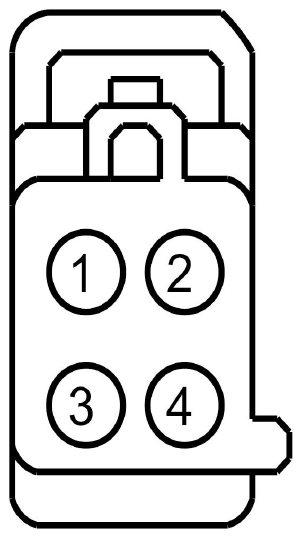

Fig 1: Identifying Adjustable Steering Column Motor, Telescope Connector End View (C2601)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP22 (GY-BN)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD
2	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)
3	CPP03 (GN-VT)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD
4	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON

Available Pigtail Kits
Pigtail Kit Part Number WPT-1191	Service Part Number: BU2Z-14S411-AEA  Gauge: 14 18  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Seat Recline Motor - Steering Column Adjust
