Windshield Wiper Motor, Right Front Connector End View (C1656)

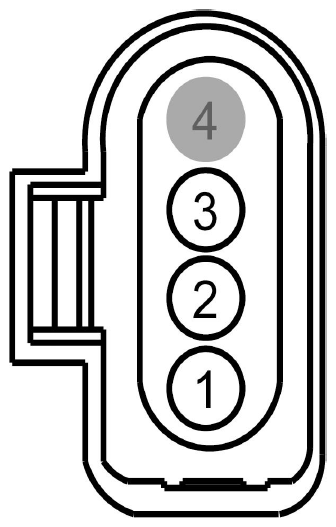

Fig 1: Identifying Windshield Wiper Motor Right Front Connector End View (C1656)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRW25 (BU-GY)	14	RELAY - FRONT WIPER PARK
2	GD123 (BK-GY)	14	GROUND - FENDER FRONT RIGHT
3	VRW28 (WH-OG)	14	MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE
4	*	*	Not Used
