High Current Battery Junction Box (BJB) Connector End View (C1716B)

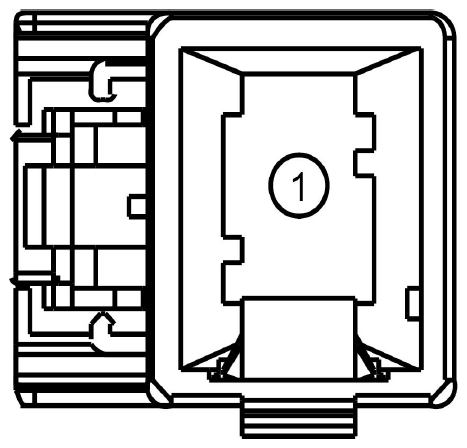

Fig 1: Identifying High Current Battery Junction Box (BJB) Connector End View (C1716B)
G08755824Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF06 (BN-RD) 10.0 FUSE - 6 2.0L
