Electrical
>>
Body Electrical
>>
OEM Connector End Views - C1181 Through C2004 - (Except Hybrid)
>>
High Current Battery Junction Box (BJB) Connector End View (C1617B)
High Current Battery Junction Box (BJB) Connector End View (C1617B)

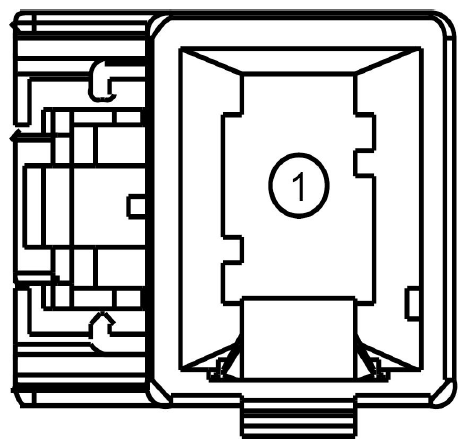

Fig 1: Identifying High Current Battery Junction Box (BJB) Connector End View (C1617B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SBF06 (BK)
10.0
FUSE - 6
1.6L/2.5L
Courtesy of FORD MOTOR CO.
