Fuel Injector 3 Connector End View (C1183)

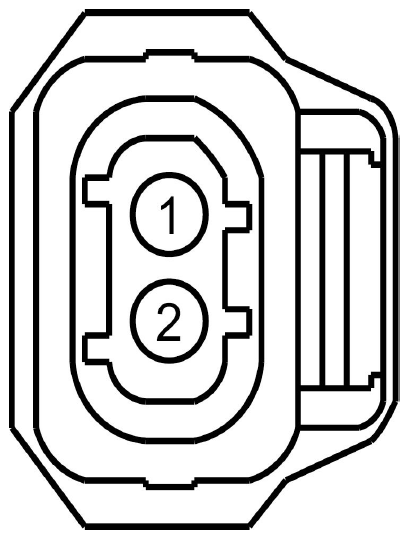

Fig 1: Identifying Fuel Injector 3 Connector End View (C1183)
G08755624Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CE207 (VT-GY) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ)
2 RE207 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN)

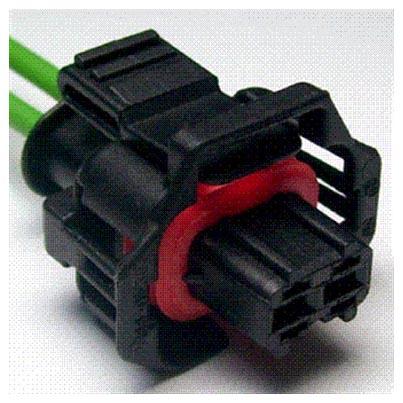

Available Pigtail Kits
Pigtail Kit Part Number WPT-1302
G08755625
 Service Part Number: CU2Z-14S411-ARA
Gauge: 16
Pin material: Silver
Cavities: 2
Vehicle Uses
  • Fuel Injector
  • Pump - Fuel Injection
  • Solenoid - Fuel Volume Regulator Control
