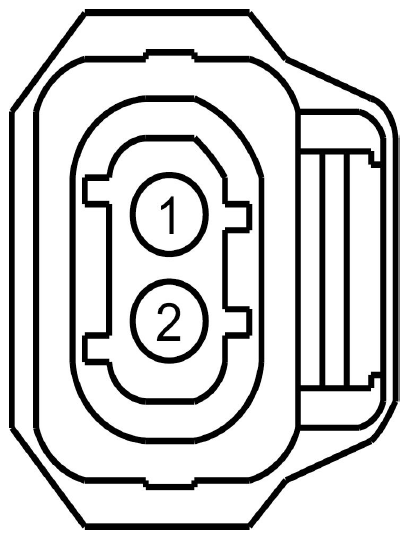

Fuel Injector 2 Connector End View (C1182)

Fig 1: Identifying Fuel Injector 2 Connector End View (C1182)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE206 (GY-YE)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ)
2	RE206 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN)

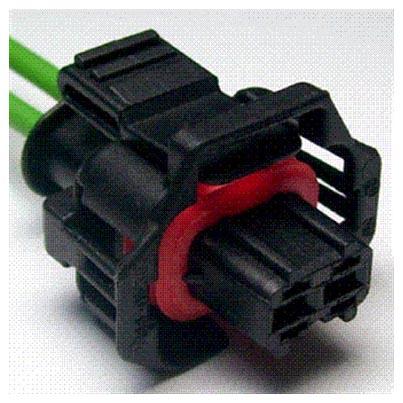

Available Pigtail Kits
Pigtail Kit Part Number WPT-1302	Service Part Number: CU2Z-14S411-ARA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control
