Fuel Injection Pump Connector End View (C1589)

Fig 1: Identifying Fuel Injection Pump Connector End View (C1589)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE226 (GN-VT)	14	FUEL VOLUMN REGULATOR RETURN (FVRRTN)	2.0L
1	RE226 (GN-VT)	16	FUEL VOLUMN REGULATOR RETURN (FVRRTN)	1.6L
2	CE226 (YE-VT)	14	FUEL VOLUMN REGULATOR (FVR)	2.0L
2	CE226 (YE-VT)	16	FUEL VOLUMN REGULATOR (FVR)	1.6L

Available Pigtail Kits

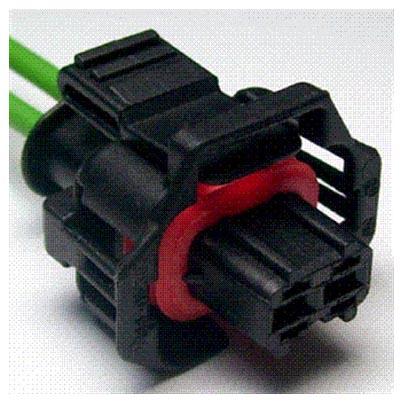

Pigtail Kit Part Number WPT-1302	Service Part Number: CU2Z-14S411-ARA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control
