Front Outer Parking Aid Sensor LH Connector End View (C1428)

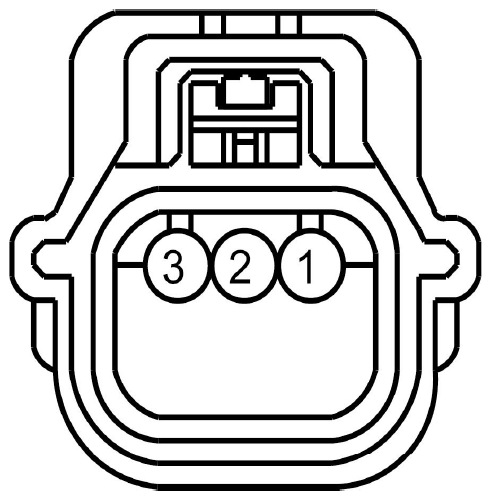

Fig 1: Identifying Front Outer Parking Aid Sensor LH Connector End View (C1428)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP06 (VT-GY)	18	CTRL MOD. - PARKING AID # SENSORS FRONT +	Fusion
1	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT +	MKZ
2	VMP11 (BU-GN)	18	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	Fusion
2	VMP11 (BU-GN)	22	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	MKZ
3	RMP06 (YE-OG)	22	CTRL MOD. - PARKING AID # SENSORS FRONT -	MKZ
3	RMP06 (YE-OG)	18	CTRL MOD. - PARKING AID # SENSORS FRONT -	Fusion

Available Pigtail Kits

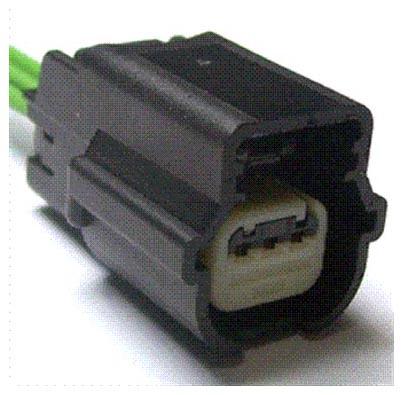

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

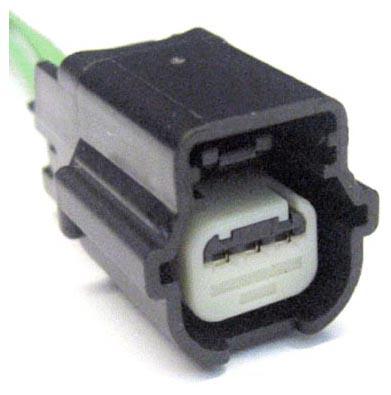

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
