Engine Coolant Valve Connector End View (C1674)

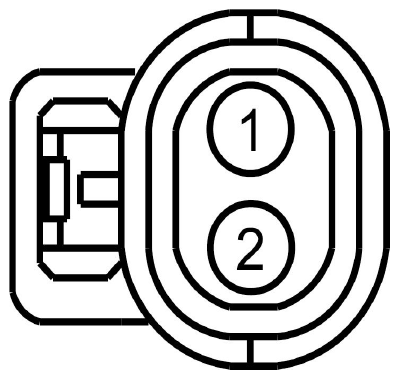

Fig 1: Identifying Engine Coolant Valve Connector End View (C1674)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE166 (GY-OG)	18	CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE
2	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1352	Service Part Number: DU2Z-14S411-ZA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Solenoid - EGR Cooler Bypass Valve - Coolant
