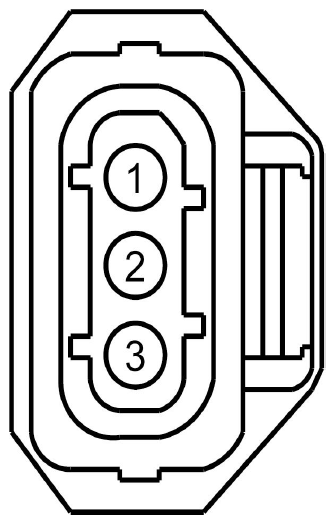

Camshaft Position 12 (CMP12) Sensor Connector End View (C1367)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 1 | RE429 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | M/T |
| 2 | VE707 (GN-VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP12) | |
| 3 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1099 | Service Part Number: AU2Z-14S411-BBA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses
|
