Battery Connector End View (C1722C)
Battery Connector End View (C1722C)

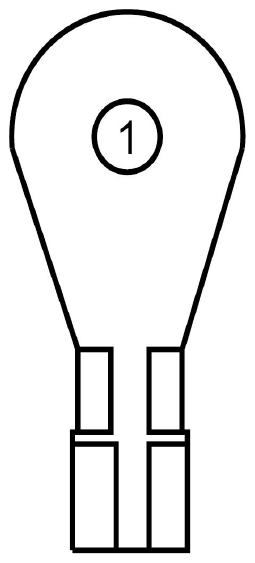

Fig 1: Identifying Battery Connector End View (C1722C)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SBF09 (RD)
18
FUSE - 9
Courtesy of FORD MOTOR CO.
