OEM Connector End Views - C1181 Through C2004 - (Except Hybrid)
>>
Battery Connector End View (C1721A)
Battery Connector End View (C1721A)

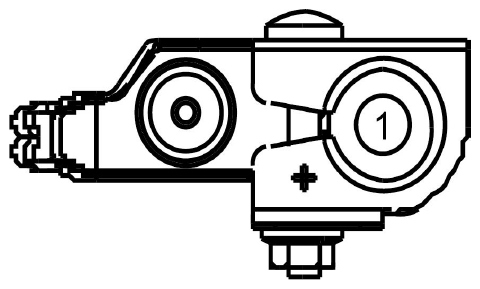

Fig 1: Identifying Battery Connector End View (C1721A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SDC02 (RD)
4
BATTERY - # PLUS
Courtesy of FORD MOTOR CO.
