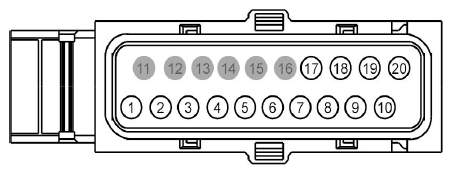

| 1 |
RE406 (GY-VT) |
20 |
CTRL MOD. - TRANSMISSION FLUID TEMPERATURE (TFT) SIGNAL RETURN |
|
| 2 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
| 3 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
| 4 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
| 5 |
CET25 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
|
| 6 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
| 7 |
CET18 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
| 8 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
| 9 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
| 10 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR-P) |
|
| 18 |
LE111 (VT-GN) |
20 |
TRS/OSS POWER SUPPLY |
|
| 19 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
|
| 20 |
RET24 (BN-BU) |
20 |
TRS/OSS SIGNAL RETURN (TRS/OSS GND) |
|
