Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views - C100 Through C335 - (Except Hybrid)
>>
Starter Motor Connector End View (C197B)
Starter Motor Connector End View (C197B)

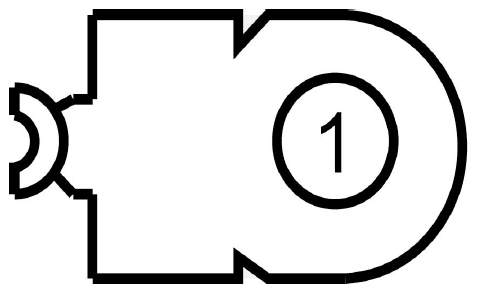

Fig 1: Identifying Starter Motor Connector End View (C197B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
CDC25 (BN-GN)
12
RELAY - STARTER
Courtesy of FORD MOTOR CO.
