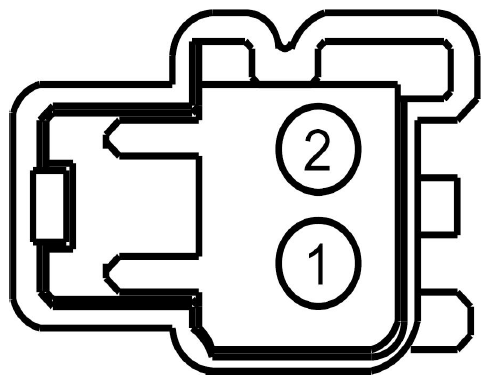

Seat Backrest Heater, Right Front Connector End View (C335)

Fig 1: Identifying Seat Backrest Heater, Right Front Connector End View (C335)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS12 (YE-GN)	16	HEATER - PASSENGER CUSHION/BACK
2	RHS02 (BU-OG)	16	GROUND - DRIVER SEAT # SEAT SWITCH

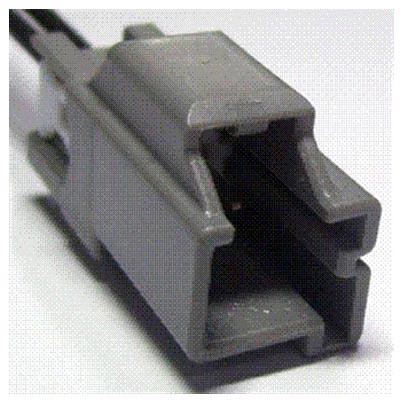

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
