Knock Sensor 2 (KS2) Connector End View (C108)

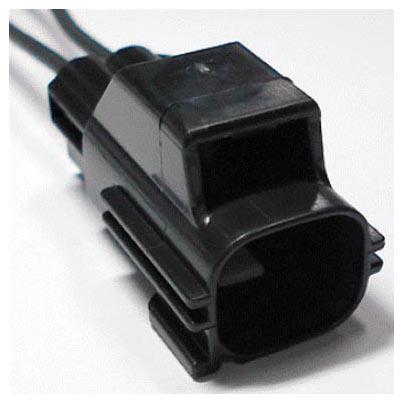

Fig 1: Identifying Knock Sensor 2 (KS2) Connector End View (C108)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND BANK 1ST (KS1+)
2	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS1-)

Available Pigtail Kits
Pigtail Kit Part Number WPT-351	Service Part Number: 3U2Z-14S411-AXA  Gauge: 16  Pin material: Gold  Cavities: 2  Vehicle Uses Motor - Engine Cooling Fan Sensor - Cam Shaft Position Sensor - Knock
Pigtail Kit Part Number WPT-994	Service Part Number: 3U2Z-14S411-AXB  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Cam Shaft Position Sensor - Knock
