Hood Ajar Switch Connector End View (C127)

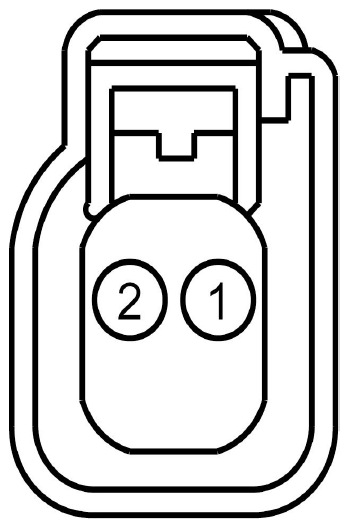

Fig 1: Identifying Hood Ajar Switch Connector End View (C127)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	22	GROUND - FENDER FRONT LEFT
2	CPL25 (BU-OG)	22	SWITCH - HOOD # AJAR

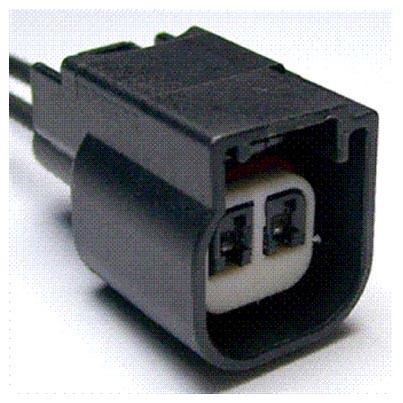

Available Pigtail Kits

Pigtail Kit Part Number WPT-1243

Service Part Number: 3U2Z-14S411-RPC  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Handle - Decklid Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - License Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Sensor - Turbine Shaft Speed Sensor - Water in Fuel Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management
