FOOTWELL Lamp LH Connector End View (C209)

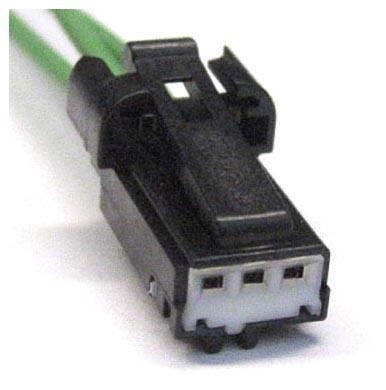

Fig 1: Identifying Footwell Lamp LH Connector End View (C209)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	Fusion
1	CBX07 (GN)	26	POWER - CTRL MOD. AMBIENT LIGHTING	MKZ
2	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	Fusion
2	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE	MKZ
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
