Driver Airbag Connector End View (C216B)

Fig 1: Identifying Driver Airbag Connector End View (C216B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR102 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 2 +
2	RR102 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 2 -

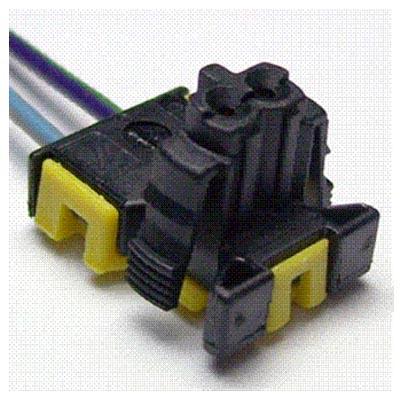

Available Pigtail Kits
Pigtail Kit Part Number WPT-1230	Service Part Number: BU2Z-14S411-BPA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger)
