Driver Airbag Connector End View (C216A)

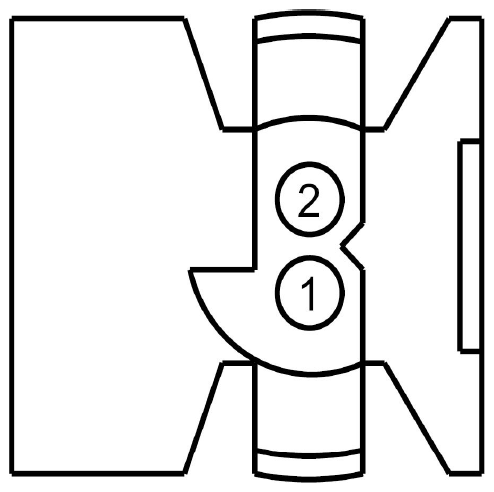

Fig 1: Identifying Driver Airbag Connector End View (C216A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR101 (WH)	20	CTRL MOD. - AIR BAG DRIVER 1 +
2	RR101 (BU)	20	CTRL MOD. - AIR BAG DRIVER 1 -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1223	Service Part Number: BU2Z-14S411-BFA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
