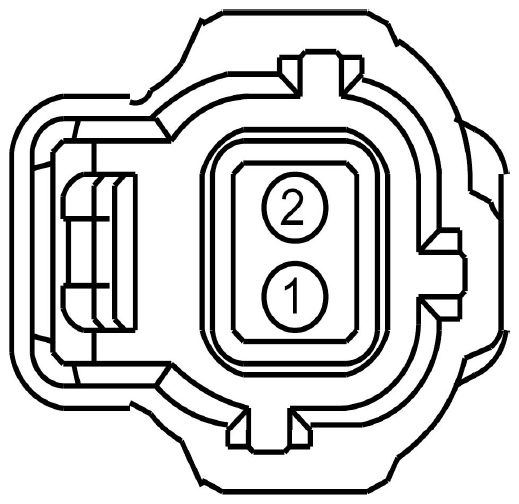

Crankshaft Position (CKP) Sensor Connector End View (C101)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKP+) | |
| 2 | RE135 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) |
| Available Pigtail Kits | |
|---|---|

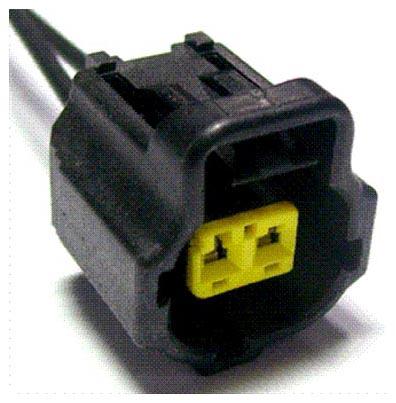

| Pigtail Kit Part Number WPT-1053 | Service Part Number: 3U2Z-14S411-CGB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|

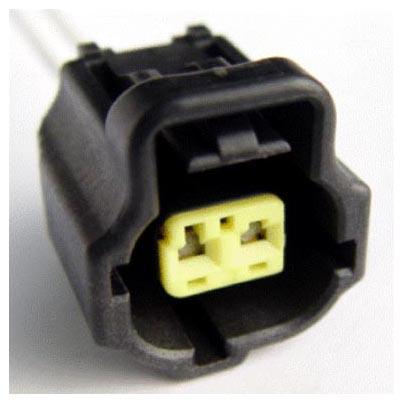

| Pigtail Kit Part Number WPT-231 | Service Part Number: 3U2Z-14S411-CGA Gauge: 18 Pin material: Gold Cavities: 2 Vehicle Uses
|

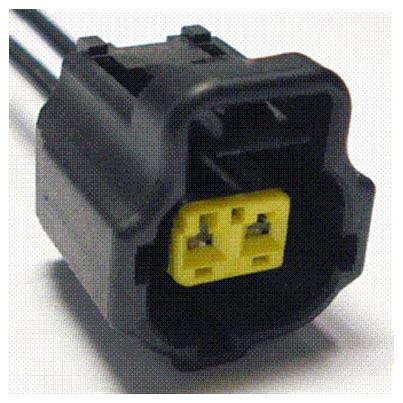

| Pigtail Kit Part Number WPT-1271 | Service Part Number: 3U2Z-14S411-CGC Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
