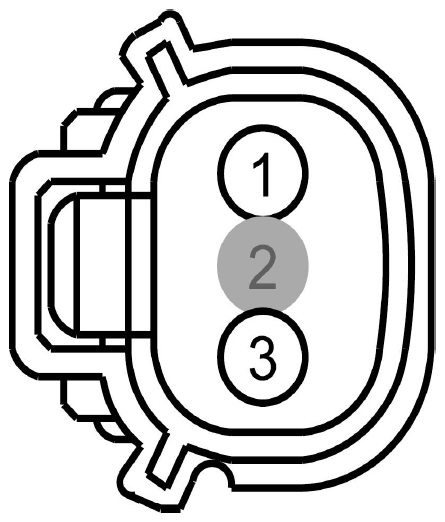

Coil On Plug (Cop) 1 Connector End View (C111)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY (COP1A) | |
| 2 | * | * | Not Used | |
| 3 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR) |

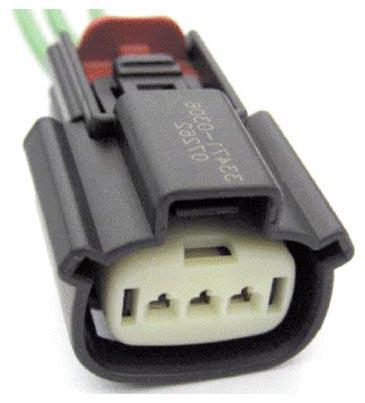

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-931 | Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses
|
