Camshaft Position 11 (CMP11) Sensor Connector End View (C180)

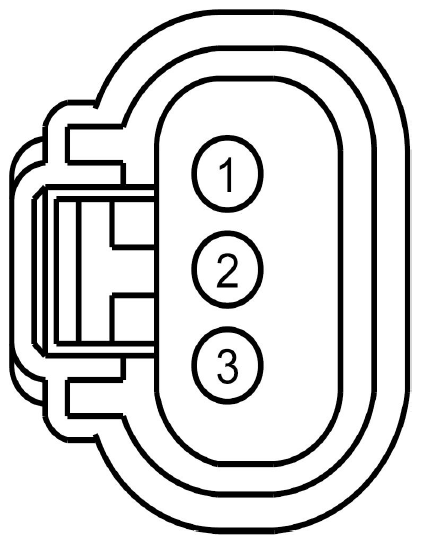

Fig 1: Identifying Camshaft Position 11 (CMP11) Sensor Connector End View (C180)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)
2	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX/IN (CMP11)
3	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

Available Pigtail Kits

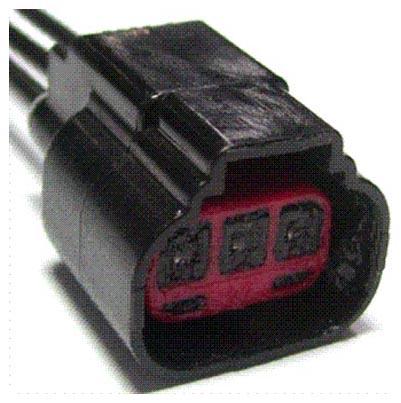

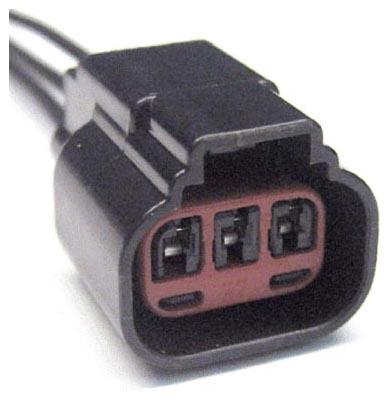

Pigtail Kit Part Number WPT-990	Service Part Number: 8U2Z-14S411-ZB  Gauge: 14  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure
Pigtail Kit Part Number WPT-921	Service Part Number: 8U2Z-14S411-ZA  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Pump - Vacuum Resistor - Blower Motor (Rear)
