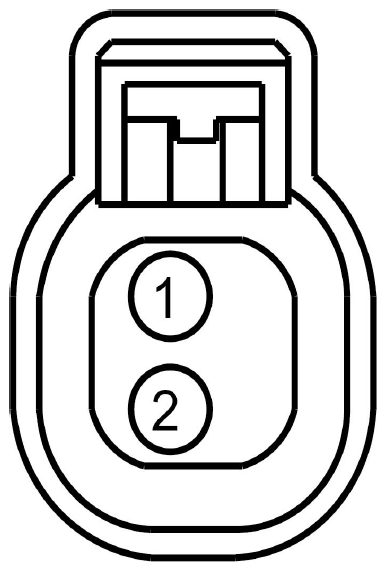

Subwoofer, Left Connector End View (C4068)

Fig 1: Identifying Subwoofer, Left Connector End View (C4068)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME01 (GN-VT)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 +
2	RME01 (GY)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 -

Available Pigtail Kits

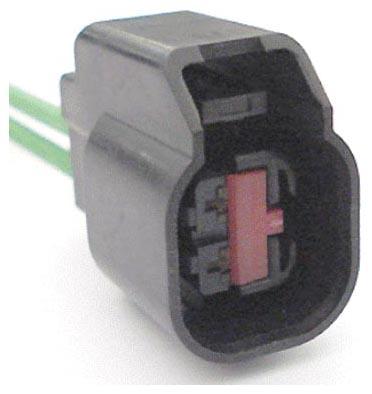

Pigtail Kit Part Number WPT-373	Service Part Number: 3U2Z-14S411-CNA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Speaker - Door Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Deck Lid/Hatch Release Switch - Stop Lamp

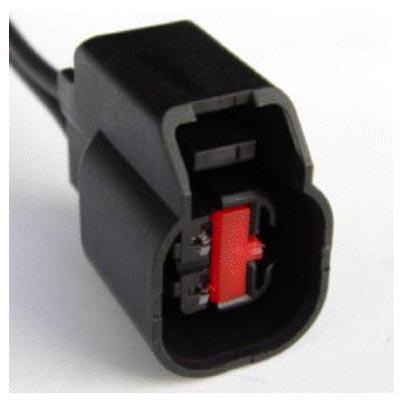

Pigtail Kit Part Number WPT-966	Service Part Number: 3U2Z-14S411-CNB  Gauge: 14  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Lamp - CHMSL (Center High Mount Stop Lamp) Module - Warning Chime/Beltminder Sensor - Brake Pedal Position Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Subwoofer Switch - Brake Deactivation Switch - Stop Lamp
