Passive Anti-Theft System Front Antenna Connector End View (C3513)

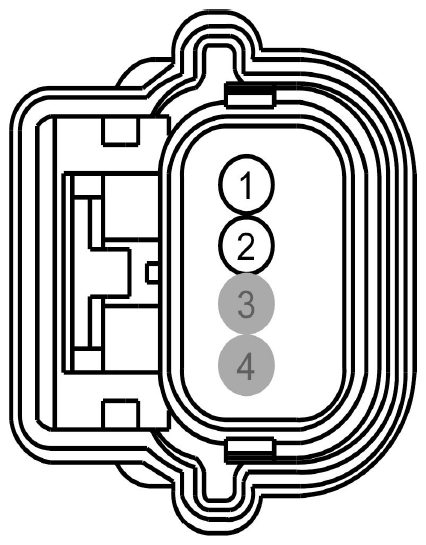

Fig 1: Identifying Passive Anti-Theft System Front Antenna Connector End View (C3513)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK05 (BN-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +
2	RPK05 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -
3	*	*	Not Used
4	*	*	Not Used

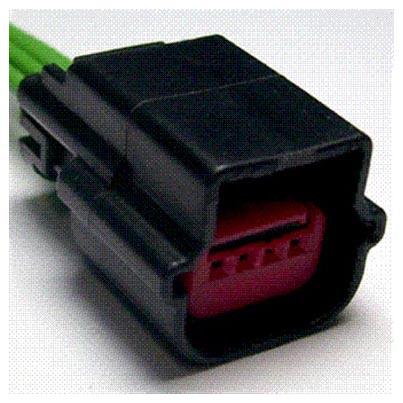

Available Pigtail Kits
Pigtail Kit Part Number WPT-1307	Service Part Number: CU2Z-14S411-AGA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder
