Luggage Compartment Lid Release Switch Connector End View (C4459)

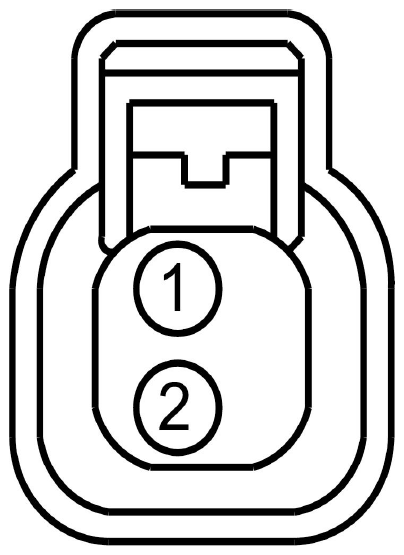

Fig 1: Identifying Luggage Compartment Lid Release Switch Connector End View (C4459)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL60 (BN-YE)	22	SWITCH - LUGGAGE COMPARTMENT LID RELEASE SWITCH
2	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT

Available Pigtail Kits

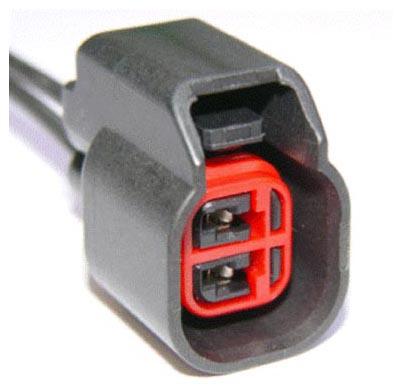

Pigtail Kit Part Number WPT-815	Service Part Number: 3U2Z-14S411-BXAA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses A/C Compressor Clutch Control - Navigation Display Fuel Pump/Sending Unit Lamp - Headlamp Switch Module - Ignition Motor - Transfer Case Electronic Shift Pretensioner - Seat Belt (Passenger) Pump - Vacuum Relay - Flasher Sensor - Cam Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Fuel Filler Door Sensor - Fuel Level Sensor - Fuel Rail Pressure Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Headlamp Leveling Sensor - Input Shaft Speed Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Mass Air Flow Sensor - Oil Pressure Sensor - Steering Wheel Position Sensor - Sunload Speaker - Reverse Park Aid (RPA)

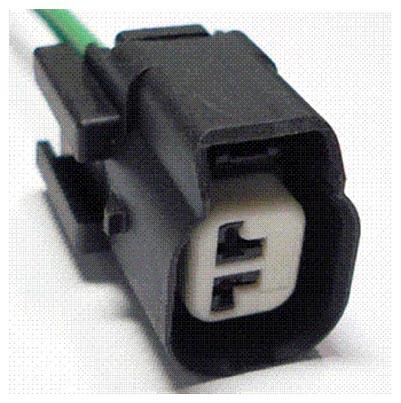

Pigtail Kit Part Number WPT-984	Service Part Number: 3U2Z-14S411-BXAB  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses A/C Compressor Clutch EGR Cooler Outlet Electronic Locking Differential Horn Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Rear Park Lamp - Reverse Lamp - Side Marker Motor - Adjustable Pedal Sensor - Adjustable Pedal Sensor - Brake Fluid Level Sensor - Cam Shaft Position Sensor - Cylinder Head Temperature Sensor - Exhaust Gas Temperature Sensor - Liftgate Obstacle Sensor - Oil Level Sensor - Output Shaft Speed Sensor - Speed Solenoid - Engine Variable Timing Speaker - Door Speaker - Front Speaker - Rear Speaker - Subwoofer Speaker - Tweeter - LH - Front Switch - A/C Compressor Clutch Cycling Switch - Backup Lamp Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Power Liftgate Switch - Reverse Park Aid
