Interior Lamp, Second Row Connector End View (C9081)

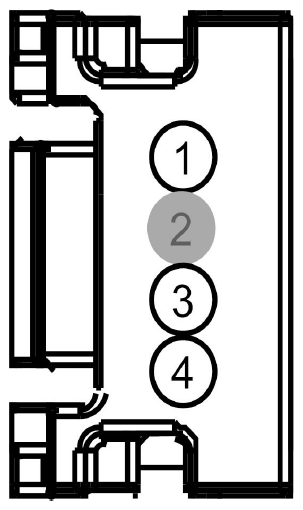

Fig 1: Identifying Interior Lamp, Second Row Connector End View (C9081)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	*	*	Not Used
3	CLN70 (BN-VT)	22	SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1
4	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
