Console Front Center Ambient Led Connector End View (C3555)

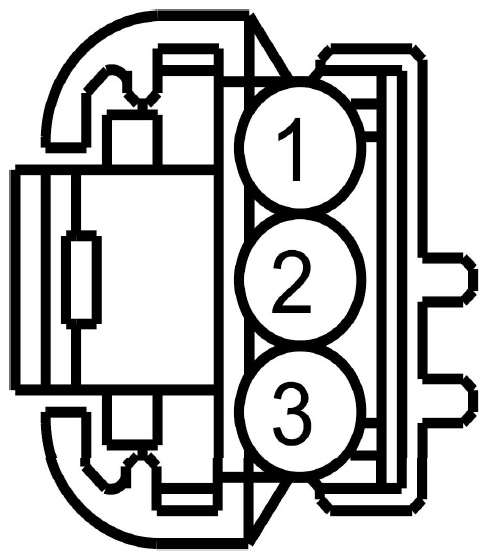

Fig 1: Identifying Console Front Center Ambient Led Connector End View (C3555)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING
2	VDN07 (WH)	26	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
3	GD214 (BK-BU)	26	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits

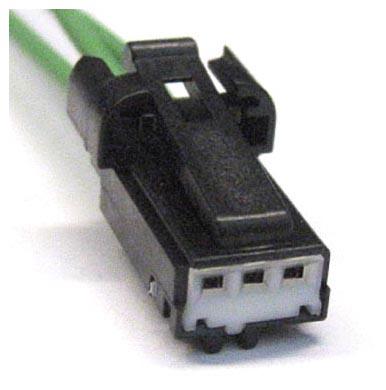

Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
