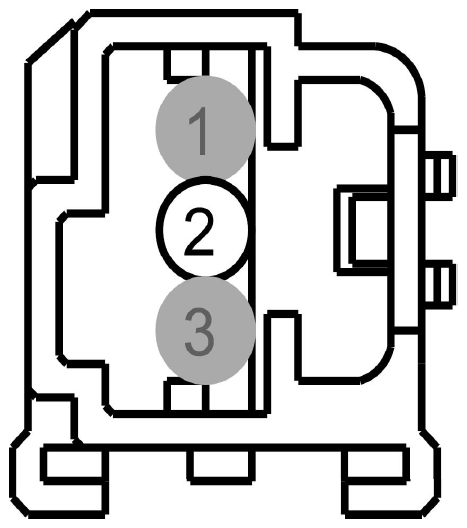

Audio Unit Antenna Connector End View (C9082)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CME36 (GN-VT) | 22 | CTRL MOD. - AUDIO # AMPLIFIER ANTENNA MAST | Fusion |
| 3 | * | * | Not Used |

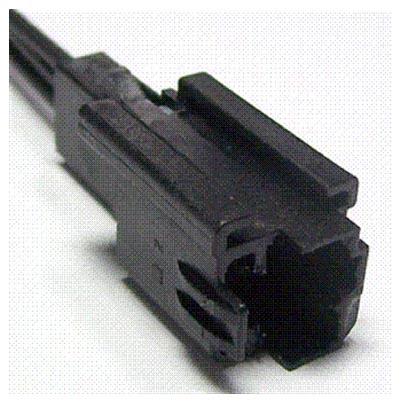

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1103 | Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
