Rear Driveshaft: Removal
- Refer to: JACKING AND LIFTING - OVERVIEW .

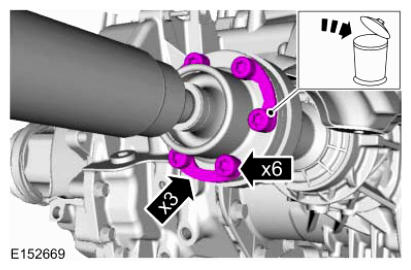

- Torque
: 35 Nm
-

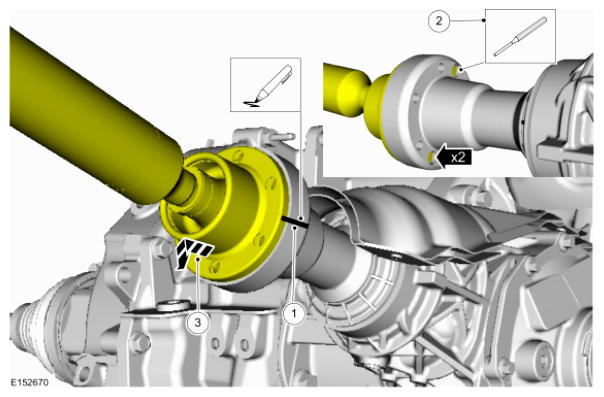

NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

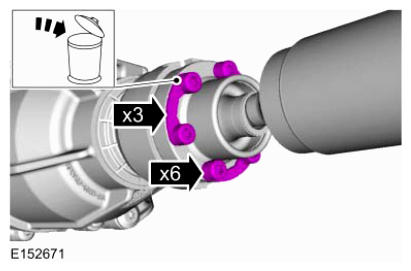

- Torque
: 35 Nm
-

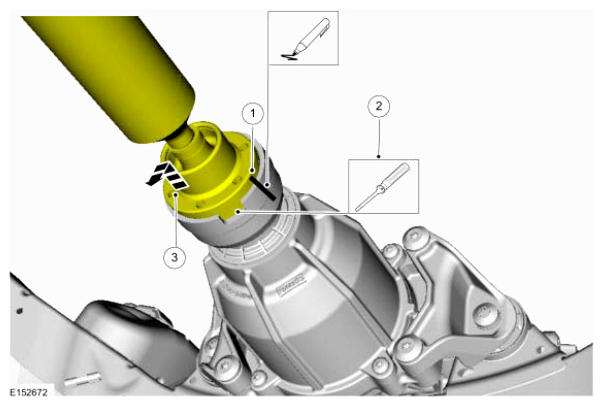

NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
-

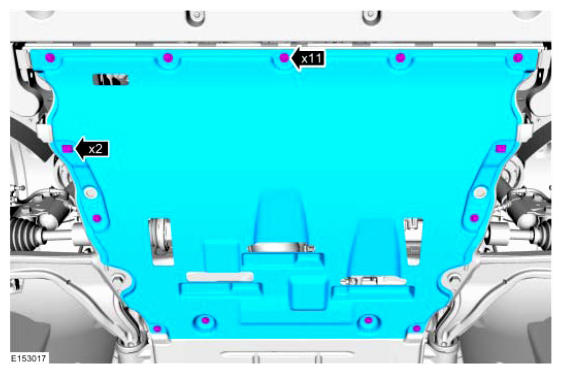

NOTE: The exhaust system is removed for clarity purposes.

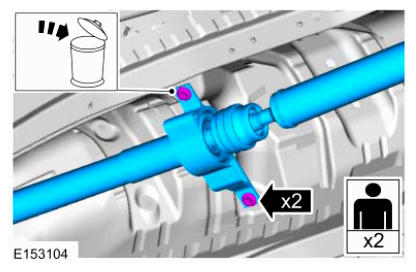

Torque : 55 Nm
