Front Halfshaft RH: Removal

  1. Refer to: WHEEL AND TIRE .

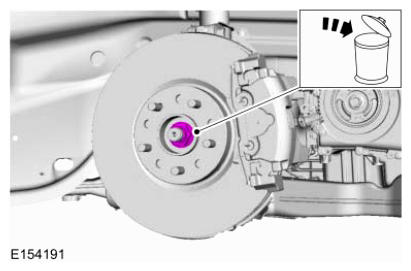

  2. Discard the specified component. Follow local disposal regulations.
    G08637377

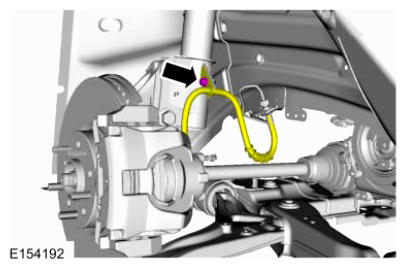

  3. G08637378

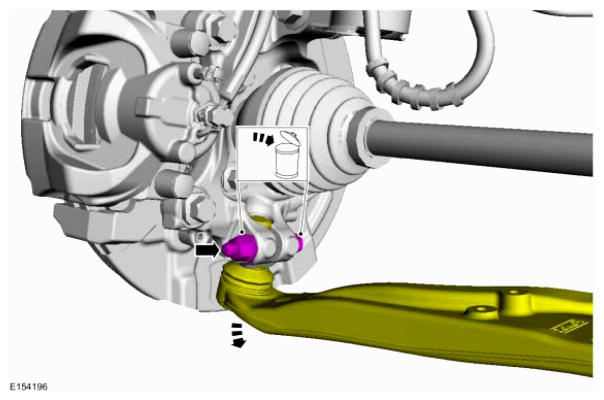

  4. NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Discard the specified component. Follow local disposal regulations.

    G08637379

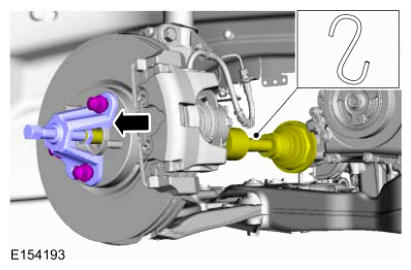

  5. NOTE: Do not bend the inner joint more than 18 degrees and the outer joint more than 45 degrees. Damage to the shaft will occur.

    Relocate and support the component.

    Special Tool(s)  : 205-D070 (D93P-1175-B) Remover, Front Wheel Hub

    G08637380
  6. G08632015
  7. Discard the specified component. Follow local disposal regulations.
    G08407956
  8. G08407957
