Rear Disc Brake: Removal

NOTE: Removal steps in this procedure may contain installation instructions.
  1. WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

    Refer ELECTRONIC PARKING BRAKE (EPB) SERVICE MODE ACTIVATION AND DEACTIVATION .

  2. Refer to: WHEEL AND TIRE .

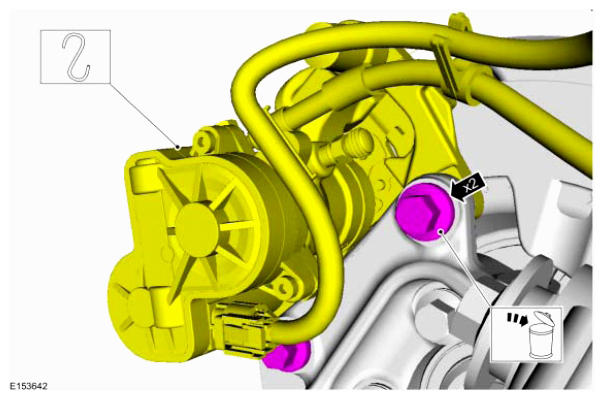

  3. Relocate and support the component. Discard the specified component. Follow local disposal regulations.

    Torque  : 90 Nm

    G08637429

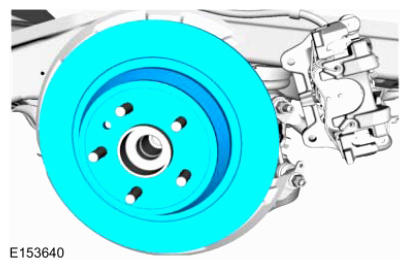

  4. G08637430
