Rear Brake Flexible Hose: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: WHEEL AND TIRE .
  3. Torque  : 25 Nm
    G08637423

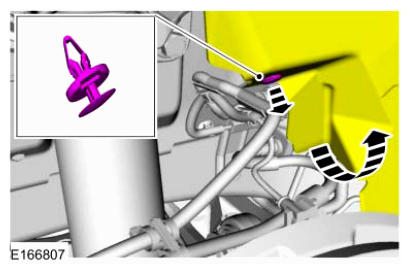

  4. G08637426

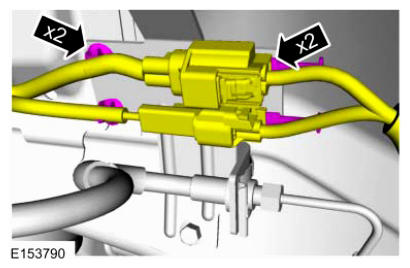

  5. G08637427

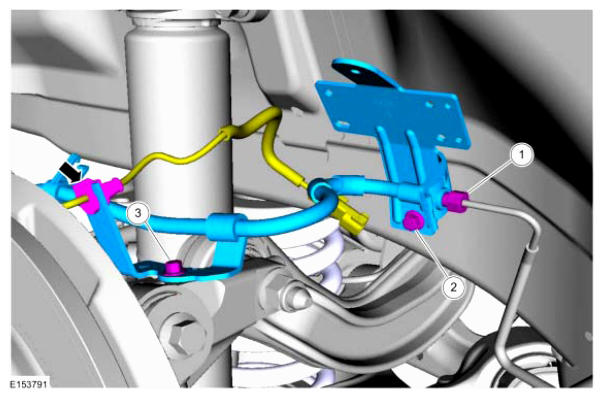

  6. Torque  :
    1. 18 Nm
    2. 25 Nm
    3. 14 Nm
      G08637428
